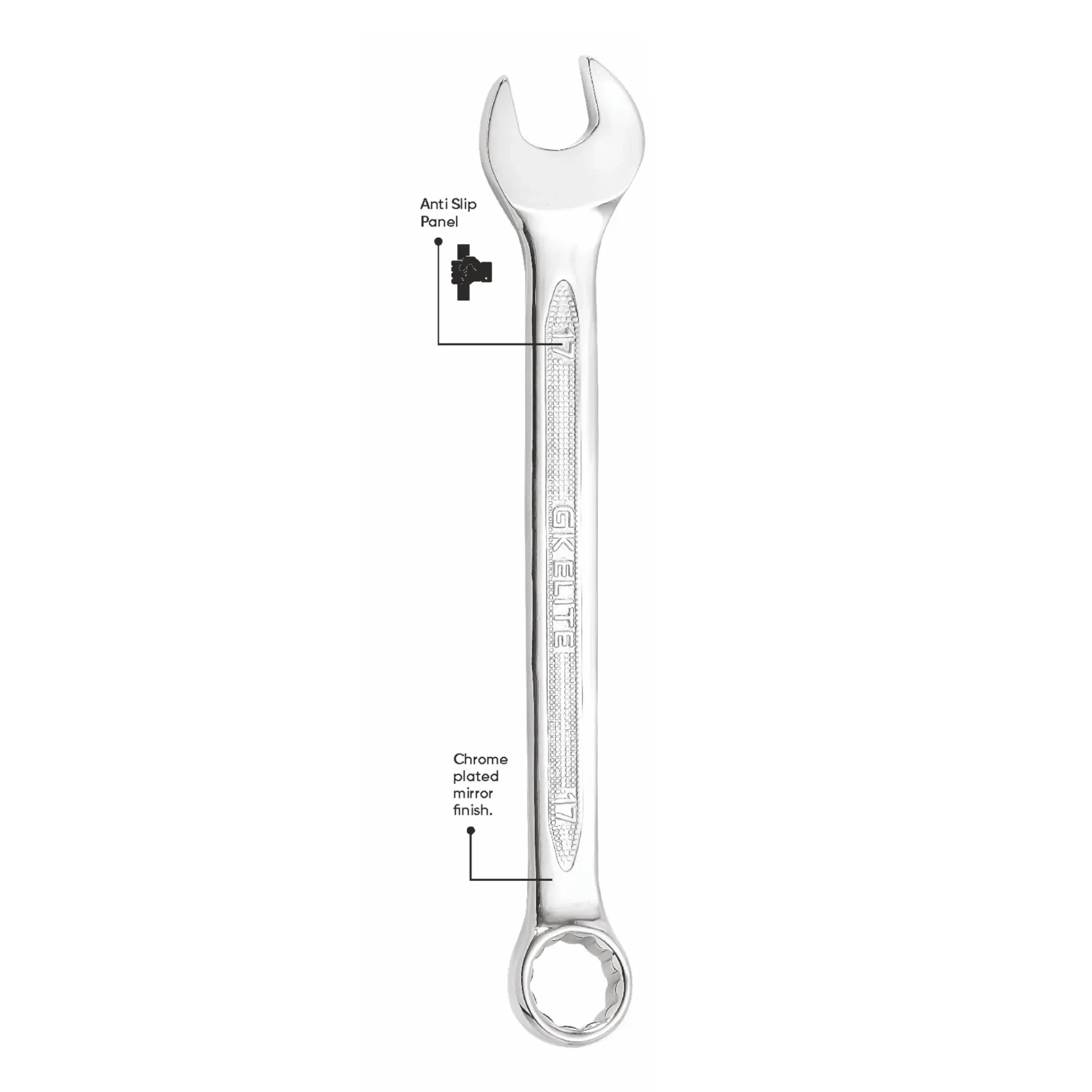

Anti Slip Stamped- Combination Spanner
Article No. - 502 F
Description
- Spanners are based on DIN 3113 specification.
- Drop Forged
- Fully hardened and tempered.
- Available in Chrome plated mirror finish.
- Each Head set at 15° angle.
| SIZES MM | INCH | LENGTH MM | WEIGHT GMS | QNTY/CNT. PCS. | VOLUME CU. M. |
|---|---|---|---|---|---|
| 6 | 1/4 | 100 | 0.020 | 500 | 0.017 |
| 7 | - | 110 | 0.022 | 500 | 0.018 |
| 8 | 5/16 | 115 | 0.025 | 500 | 0.017 |
| 9 | - | 125 | 0.030 | 500 | 0.016 |
| 10 | 3/8 | 135 | 0.040 | 500 | 0.019 |
| 11 | 7/16 | 145 | 0.045 | 400 | 0.018 |
| 12 | - | 155 | 0.050 | 300 | 0.018 |
| 13 | 1/2 | 165 | 0.060 | 250 | 0.018 |
| 14 | 9/16 | 175 | 0.075 | 250 | 0.020 |
| 15 | - | 185 | 0.090 | 200 | 0.017 |
| 16 | 5/8 | 195 | 0.100 | 200 | 0.021 |
| 17 | 11/16 | 210 | 0.120 | 100 | 0.020 |
| 18 | - | 220 | 0.120 | 100 | 0.020 |
| 19 | 3/4 | 230 | 0.160 | 100 | 0.016 |
| 20 | - | 240 | 0.170 | 100 | 0.020 |
| 21 | 13/16 | 245 | 0.185 | 100 | 0.017 |
| 22 | 7/8 | 250 | 0.215 | 100 | 0.019 |
| 23 | - | 260 | 0.255 | 100 | 0.017 |
| 24 | 15/16 | 270 | 0.285 | 80 | 0.022 |
| 25 | 1 | 280 | 0.345 | 60 | 0.021 |
| 26 | - | 290 | 0.345 | 60 | 0.018 |
| 27 | 1.1/16 | 300 | 0.425 | 60 | 0.017 |
| 28 | 1.1/8 | 310 | 0.460 | 40 | 0.017 |
| 30 | - | 330 | 0.540 | 40 | 0.020 |
| 32 | 1.1/4 | 350 | 0.560 | 40 | 0.022 |
MEETS WITH DIN & ANSI STANDARD
| SETS | SIZES MM | WEIGHT GMS | QNTY/CNT. PCS. |
|---|---|---|---|
| 6 PCS | 8, 10, 12, 13, 14, 17 | 432 | 40 |
| 8 PCS | 8-11, 13, 14, 17, 19 | 636 | 30 |
| 12 PCS | 6-14, 17, 19, 22 | 990 | 20 |
| 14 PCS | 8-15, 17, 19, 22, 24, 27, 32 | 2500 | 10 |
| 25 PCS | 6-28, 30, 32 | 4975 | 4 |
